Single Wall


Electric Chimney Fan

Article Code: 10.E


The Chimney Fan was designed to permanently solve any problems of draw or downdraught. It is used to solve problems in systems without air vents, installed in almost hermetically sealed environments due to ever-increasing insulation.

It comes equipped with a variable speed control unit able to depressurize the chimney system creating a suction force within the same.

Materials used:  Sheet Metal in Dark Brown, Stainless Steel and Copper.

Sizes available:  round, it comes with a male form with a 250mm or 350 mm diameter; square, it comes with an adjustable flange to fit from 320 mm x 320 mm to 420mm x 420 mm.

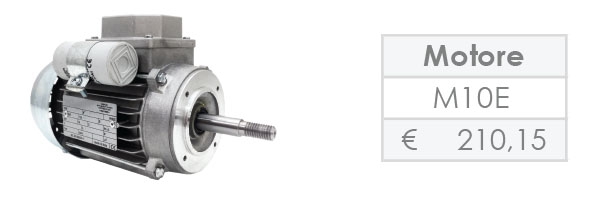

Motor: 0.18 KW power, voltage 230 V - 50 Hz.

Capacity: 1000 cubic meters/h, to be considered as an index estimated in ideal conditions at average speed.

Weight: 20 KG

Packaging: size 520 mm x 520 mm x 520 mm.

A pallet with a base of 1050 mm x 1200 mm and 2080 mm in height, containing 20 pcs.

The cable required to power an electrical terminal from the control unit to the motor must be of the type FROR 450/750 V 3x1.5 mm2 (the 3 index indicates the number of wires inside the cable, the ground-phase and neutral; the index 1.5 mm2 indicates the surface condition the individual wires within the cable must have), the operating temperature ranges from -15 ° C to 70 ° C.

If the cable passes in close proximity to sources of heat in excess of 100 ° C the FROR cable type is not suitable, for these applications we recommend a Thermo Resistant Cable with a Silicone jacket, having the same dimensions of the FROR, but with a wider operating temperature range that goes from -20 ° C to 200 ° C.


On the roof, at the top of flues for the evacuation into the atmosphere of smoke and gases generated by the combustion of wood burning appliances, or air, in the case of environments in which the recycling of air may be required.


73/23 / EEC Low Voltage

89/336 / EEC Electromagnetic Compatibility

89/392 / EEC Machinery Safety

93/68 / EC CE

02/96 / EC Electrical and Electronic Equipment Waste

Dimensione Prev. T.M. Inox Rame
Base Tonda Ø 350 € 610,42 € 739,12 € 1416,08
Base Quadra Reg. / Sup. Tondo € 661,90 € 833,50 € 1736,12
Base Quadra Reg. / Sup. Quadro € 661,90 € 833,50 € 1736,12

I prezzi riportati sul sito possono subire variazioni senza preavviso.

The technical data on the website are subject to change without notice.
